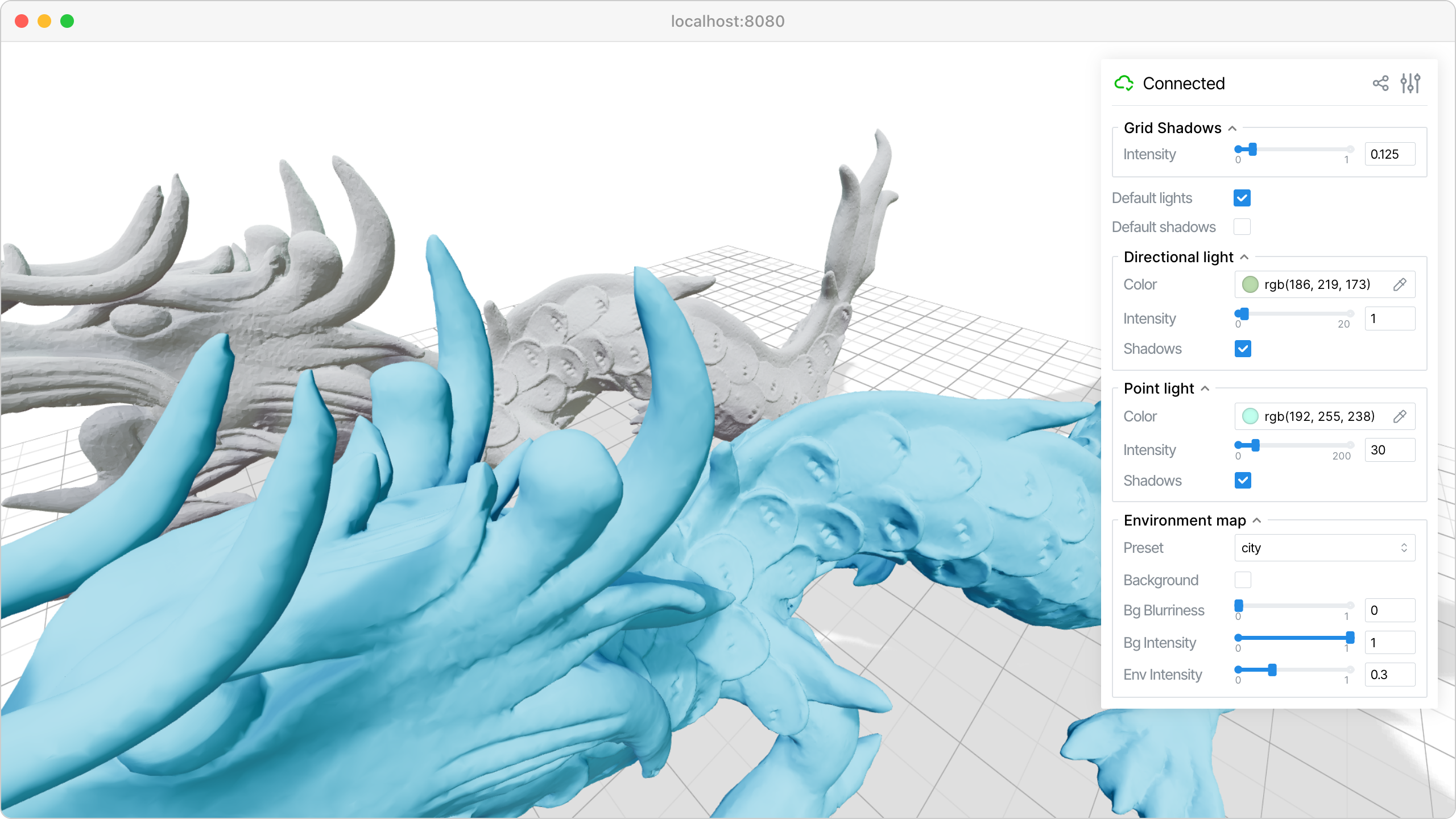

Lighting and shadows

Add directional lights and ambient lighting to illuminate 3D meshes with realistic shadows.

Features:

• viser.SceneApi.set_ambient_light() for global illumination

• viser.SceneApi.add_directional_light() for sun-like directional lighting

• viser.SceneApi.configure_default_lights() for quick setup

• viser.SceneNodeHandle.cast_shadow to enable shadow casting

• viser.SceneApi.add_light_spot() for focused cone lighting with direction control

• Dynamic light control with GUI sliders

Note

This example requires external assets. To download them, run:

git clone -b v1.0.24 https://github.com/viser-project/viser.git
cd viser/examples
./assets/download_assets.sh
python 01_scene/06_lighting.py  # With viser installed.

Source: examples/01_scene/06_lighting.py

Code

import time
from pathlib import Path

import numpy as np
import trimesh

import viser
import viser.transforms as tf


def main() -> None:
    # Load mesh.
    mesh = trimesh.load_mesh(str(Path(__file__).parent / "../assets/dragon.obj"))
    assert isinstance(mesh, trimesh.Trimesh)
    mesh.apply_scale(0.05)
    vertices = mesh.vertices
    faces = mesh.faces
    print(f"Loaded mesh with {vertices.shape} vertices, {faces.shape} faces")
    print(mesh)

    # Start Viser server with mesh.
    server = viser.ViserServer()

    server.scene.add_mesh_simple(
        name="/simple",
        vertices=vertices,
        faces=faces,
        wxyz=tf.SO3.from_x_radians(np.pi / 2).wxyz,
        position=(0.0, 2.0, 0.0),
    )
    server.scene.add_mesh_trimesh(
        name="/trimesh",
        mesh=mesh,
        wxyz=tf.SO3.from_x_radians(np.pi / 2).wxyz,
        position=(0.0, -2.0, 0.0),
    )
    grid = server.scene.add_grid(
        "grid",
        width=20.0,
        height=20.0,
        position=np.array([0.0, 0.0, -2.0]),
    )

    # adding controls to custom lights in the scene
    server.scene.add_transform_controls(
        "/control0", position=(0.0, 10.0, 5.0), scale=2.0
    )
    server.scene.add_label("/control0/label", "Directional")
    server.scene.add_transform_controls(
        "/control1", position=(0.0, -5.0, 5.0), scale=2.0
    )
    server.scene.add_label("/control1/label", "Point")
    server.scene.add_transform_controls(
        "/control2", position=(5.0, 0.0, 5.0), scale=2.0
    )
    server.scene.add_label("/control2/label", "Spot")

    directional_light = server.scene.add_light_directional(
        name="/control0/directional_light",
        color=(186, 219, 173),
        cast_shadow=True,
    )
    point_light = server.scene.add_light_point(
        name="/control1/point_light",
        color=(192, 255, 238),
        intensity=30.0,
        cast_shadow=True,
    )
    spot_light = server.scene.add_light_spot(
        name="/control2/spot_light",
        color=(255, 200, 150),
        intensity=80.0,
        distance=15.0,
        angle=np.pi / 6,
        penumbra=0.4,
        cast_shadow=True,
        # direction is in the light's local frame; rotating the
        # transform control will rotate the cone accordingly.
        direction=(0.0, 0.0, -1.0),
    )

    with server.gui.add_folder("Grid Shadows"):
        # Create grid shadows toggle
        grid_shadows = server.gui.add_slider(
            "Intensity",
            min=0.0,
            max=1.0,
            step=0.01,
            initial_value=grid.shadow_opacity,
        )

        @grid_shadows.on_update
        def _(_) -> None:
            grid.shadow_opacity = grid_shadows.value

    # Create default light toggle.
    gui_default_lights = server.gui.add_checkbox("Default lights", initial_value=True)
    gui_default_shadows = server.gui.add_checkbox(
        "Default shadows", initial_value=False
    )

    gui_default_lights.on_update(
        lambda _: server.scene.configure_default_lights(
            gui_default_lights.value, gui_default_shadows.value
        )
    )
    gui_default_shadows.on_update(
        lambda _: server.scene.configure_default_lights(
            gui_default_lights.value, gui_default_shadows.value
        )
    )

    # Create light control inputs.
    with server.gui.add_folder("Directional light"):
        gui_directional_color = server.gui.add_rgb(
            "Color", initial_value=directional_light.color
        )
        gui_directional_intensity = server.gui.add_slider(
            "Intensity",
            min=0.0,
            max=20.0,
            step=0.01,
            initial_value=directional_light.intensity,
        )
        gui_directional_shadows = server.gui.add_checkbox("Shadows", True)

        @gui_directional_color.on_update
        def _(_) -> None:
            directional_light.color = gui_directional_color.value

        @gui_directional_intensity.on_update
        def _(_) -> None:
            directional_light.intensity = gui_directional_intensity.value

        @gui_directional_shadows.on_update
        def _(_) -> None:
            directional_light.cast_shadow = gui_directional_shadows.value

    with server.gui.add_folder("Point light"):
        gui_point_color = server.gui.add_rgb("Color", initial_value=point_light.color)
        gui_point_intensity = server.gui.add_slider(
            "Intensity",
            min=0.0,
            max=200.0,
            step=0.01,
            initial_value=point_light.intensity,
        )
        gui_point_shadows = server.gui.add_checkbox("Shadows", True)

        @gui_point_color.on_update
        def _(_) -> None:
            point_light.color = gui_point_color.value

        @gui_point_intensity.on_update
        def _(_) -> None:
            point_light.intensity = gui_point_intensity.value

        @gui_point_shadows.on_update
        def _(_) -> None:
            point_light.cast_shadow = gui_point_shadows.value

    with server.gui.add_folder("Spot light"):
        gui_spot_color = server.gui.add_rgb("Color", initial_value=spot_light.color)
        gui_spot_intensity = server.gui.add_slider(
            "Intensity",
            min=0.0,
            max=200.0,
            step=1.0,
            initial_value=spot_light.intensity,
        )
        gui_spot_angle = server.gui.add_slider(
            "Cone angle (deg)",
            min=5.0,
            max=89.0,
            step=1.0,
            initial_value=np.rad2deg(spot_light.angle),
        )
        gui_spot_penumbra = server.gui.add_slider(
            "Penumbra",
            min=0.0,
            max=1.0,
            step=0.01,
            initial_value=spot_light.penumbra,
        )
        gui_spot_shadows = server.gui.add_checkbox("Shadows", True)

        @gui_spot_color.on_update
        def _(_) -> None:
            spot_light.color = gui_spot_color.value

        @gui_spot_intensity.on_update
        def _(_) -> None:
            spot_light.intensity = gui_spot_intensity.value

        @gui_spot_angle.on_update
        def _(_) -> None:
            spot_light.angle = np.deg2rad(gui_spot_angle.value)

        @gui_spot_penumbra.on_update
        def _(_) -> None:
            spot_light.penumbra = gui_spot_penumbra.value

        @gui_spot_shadows.on_update
        def _(_) -> None:
            spot_light.cast_shadow = gui_spot_shadows.value

    # Create GUI elements for controlling environment map.
    with server.gui.add_folder("Environment map"):
        gui_env_preset = server.gui.add_dropdown(
            "Preset",
            (
                "None",
                "apartment",
                "city",
                "dawn",
                "forest",
                "lobby",
                "night",
                "park",
                "studio",
                "sunset",
                "warehouse",
            ),
            initial_value="city",
        )
        gui_background = server.gui.add_checkbox("Background", False)
        gui_bg_blurriness = server.gui.add_slider(
            "Bg Blurriness",
            min=0.0,
            max=1.0,
            step=0.01,
            initial_value=0.0,
        )
        gui_bg_intensity = server.gui.add_slider(
            "Bg Intensity",
            min=0.0,
            max=1.0,
            step=0.01,
            initial_value=1.0,
        )
        gui_env_intensity = server.gui.add_slider(
            "Env Intensity",
            min=0.0,
            max=1.0,
            step=0.01,
            initial_value=0.3,
        )

    def update_environment_map(_) -> None:
        server.scene.configure_environment_map(
            gui_env_preset.value if gui_env_preset.value != "None" else None,
            background=gui_background.value,
            background_blurriness=gui_bg_blurriness.value,
            background_intensity=gui_bg_intensity.value,
            environment_intensity=gui_env_intensity.value,
        )

    update_environment_map(None)
    gui_env_preset.on_update(update_environment_map)
    gui_background.on_update(update_environment_map)
    gui_bg_blurriness.on_update(update_environment_map)
    gui_bg_intensity.on_update(update_environment_map)
    gui_env_intensity.on_update(update_environment_map)

    while True:
        time.sleep(10.0)


if __name__ == "__main__":
    main()
