Get renders

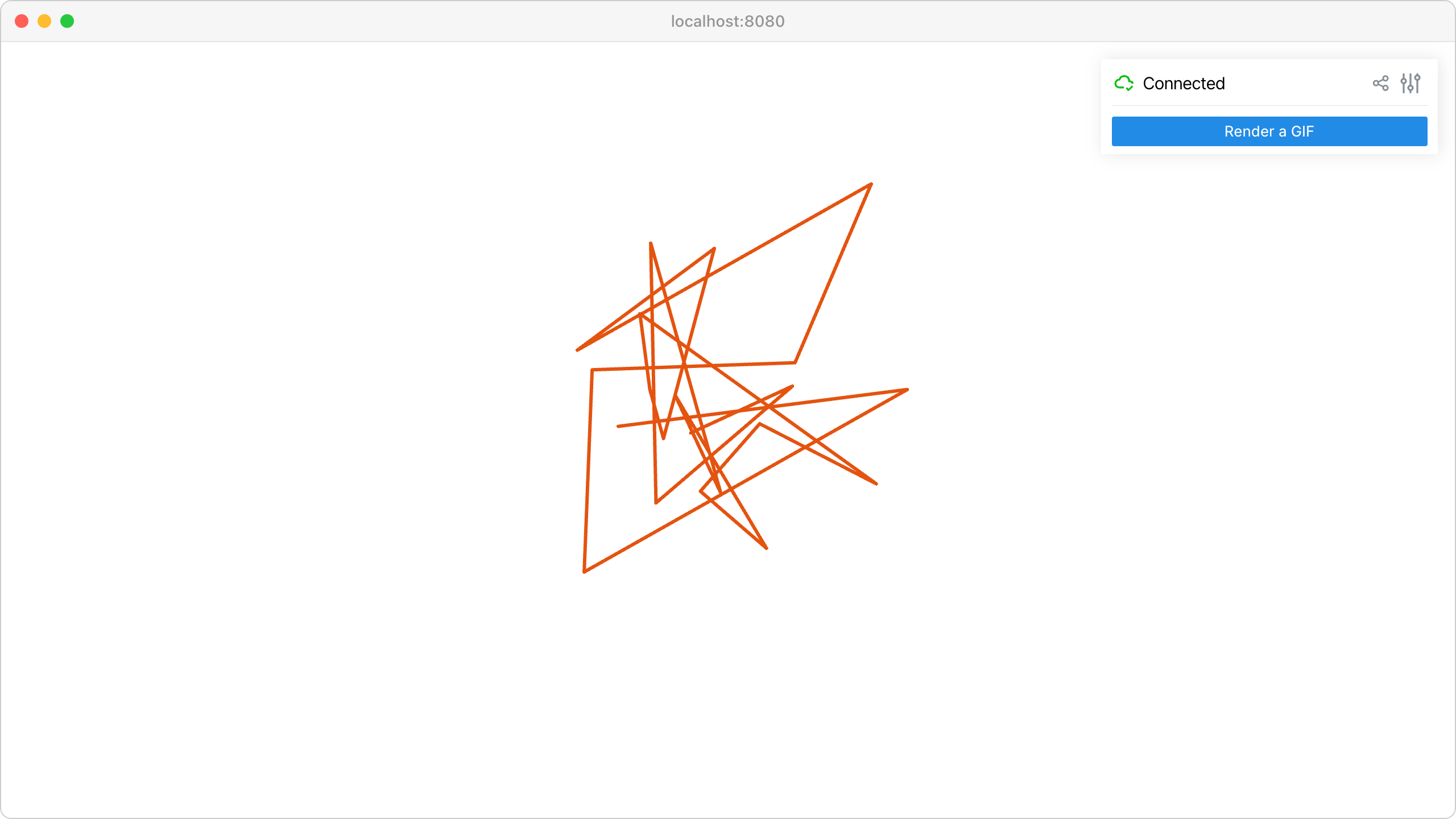

Capture rendered images from client viewports for processing or saving.

Features:

• viser.ClientHandle.get_render() for viewport image capture

• Automatic image saving with imageio

• GUI controls for triggering captures

• Real-time viewport-to-image conversion

Source: examples/03_interaction/02_get_renders.py

Code

import time

import imageio.v3 as iio
import numpy as np

import viser


def main():
    server = viser.ViserServer()

    # Shared across all clients.
    server.scene.add_spline_catmull_rom(
        "/catmull_initial",
        np.random.normal(size=(30, 3)),
        tension=0.5,
        line_width=3.0,
        color=np.random.uniform(size=3),
    )

    button = server.gui.add_button("Render a GIF")

    @button.on_click
    def _(event: viser.GuiEvent) -> None:
        client = event.client
        assert client is not None

        client.scene.reset()

        images = []

        for i in range(20):
            # Add spline to just this client.
            client.scene.add_spline_catmull_rom(
                f"/catmull_{i}",
                np.random.normal(size=(30, 3)),
                tension=0.5,
                line_width=3.0,
                color=np.random.uniform(size=3),
            )
            images.append(client.get_render(height=720, width=1280))
            print("Got image with shape", images[-1].shape)

        print("Generating and sending GIF...")
        client.send_file_download(
            "image.gif", iio.imwrite("<bytes>", images, extension=".gif", loop=0)
        )
        print("Done!")

    while True:
        time.sleep(10.0)


if __name__ == "__main__":
    main()
