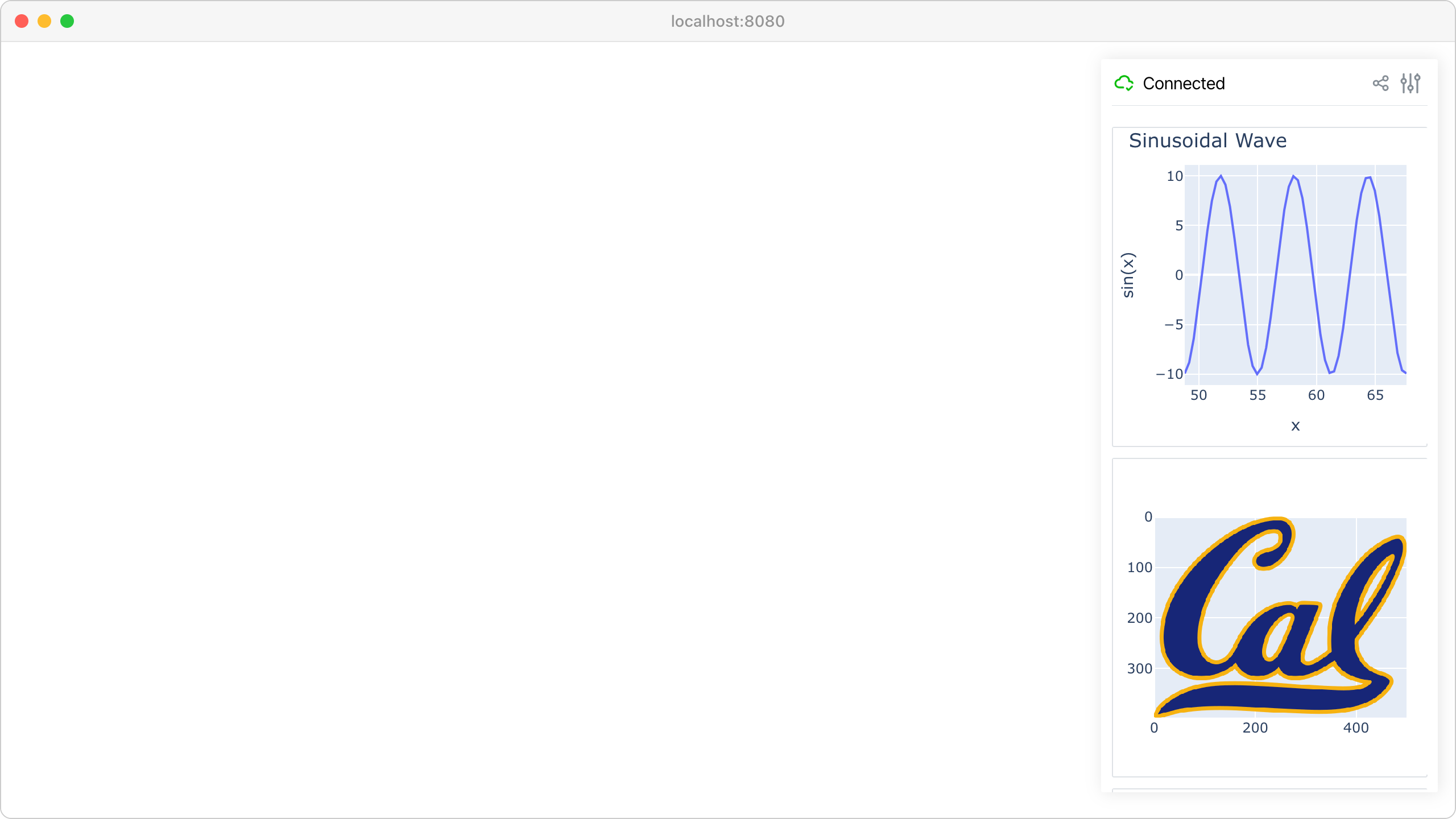

Plotly integration

Embed interactive Plotly charts and graphs directly in the GUI interface.

Features:

  • viser.GuiApi.add_plotly() for embedding Plotly figures

  • Real-time chart updates with dynamic data

  • Interactive charts with zoom, pan, and hover

  • Multiple chart types (line plots, 3D surfaces, heatmaps)

Source: examples/02_gui/08_plotly_integration.py

Plotly integration

Code

 1import time
 2
 3import numpy as np
 4import plotly.express as px
 5import plotly.graph_objects as go
 6from PIL import Image
 7
 8import viser
 9
10
11def create_sinusoidal_wave(t: float) -> go.Figure:
12    x_data = np.linspace(t, t + 6 * np.pi, 50)
13    y_data = np.sin(x_data) * 10
14
15    fig = px.line(
16        x=list(x_data),
17        y=list(y_data),
18        labels={"x": "x", "y": "sin(x)"},
19        title="Sinusoidal Wave",
20    )
21
22    # this sets the margins to be tight around the title.
23    fig.layout.title.automargin = True  # type: ignore
24    fig.update_layout(
25        margin=dict(l=20, r=20, t=20, b=20),
26    )  # Reduce plot margins.
27
28    return fig
29
30
31def main() -> None:
32    server = viser.ViserServer()
33
34    # Plot type 1: Line plot.
35    line_plot_time = 0.0
36    line_plot = server.gui.add_plotly(figure=create_sinusoidal_wave(line_plot_time))
37
38    # Plot type 2: Image plot.
39    # Use Path to handle relative paths correctly from any working directory
40    from pathlib import Path
41
42    assets_dir = Path(__file__).parent.parent / "assets"
43    fig = px.imshow(Image.open(assets_dir / "Cal_logo.png"))
44    fig.update_layout(
45        margin=dict(l=20, r=20, t=20, b=20),
46    )
47    server.gui.add_plotly(figure=fig, aspect=1.0)
48
49    # Plot type 3: 3D Scatter plot.
50    fig = px.scatter_3d(
51        px.data.iris(),
52        x="sepal_length",
53        y="sepal_width",
54        z="petal_width",
55        color="species",
56    )
57    fig.update_layout(legend=dict(yanchor="top", y=0.99, xanchor="left", x=0.01))
58    fig.update_layout(
59        margin=dict(l=20, r=20, t=20, b=20),
60    )
61    server.gui.add_plotly(figure=fig, aspect=1.0)
62
63    while True:
64        # Update the line plot.
65        line_plot_time += 0.1
66        line_plot.figure = create_sinusoidal_wave(line_plot_time)
67
68        time.sleep(0.01)
69
70
71if __name__ == "__main__":
72    main()
