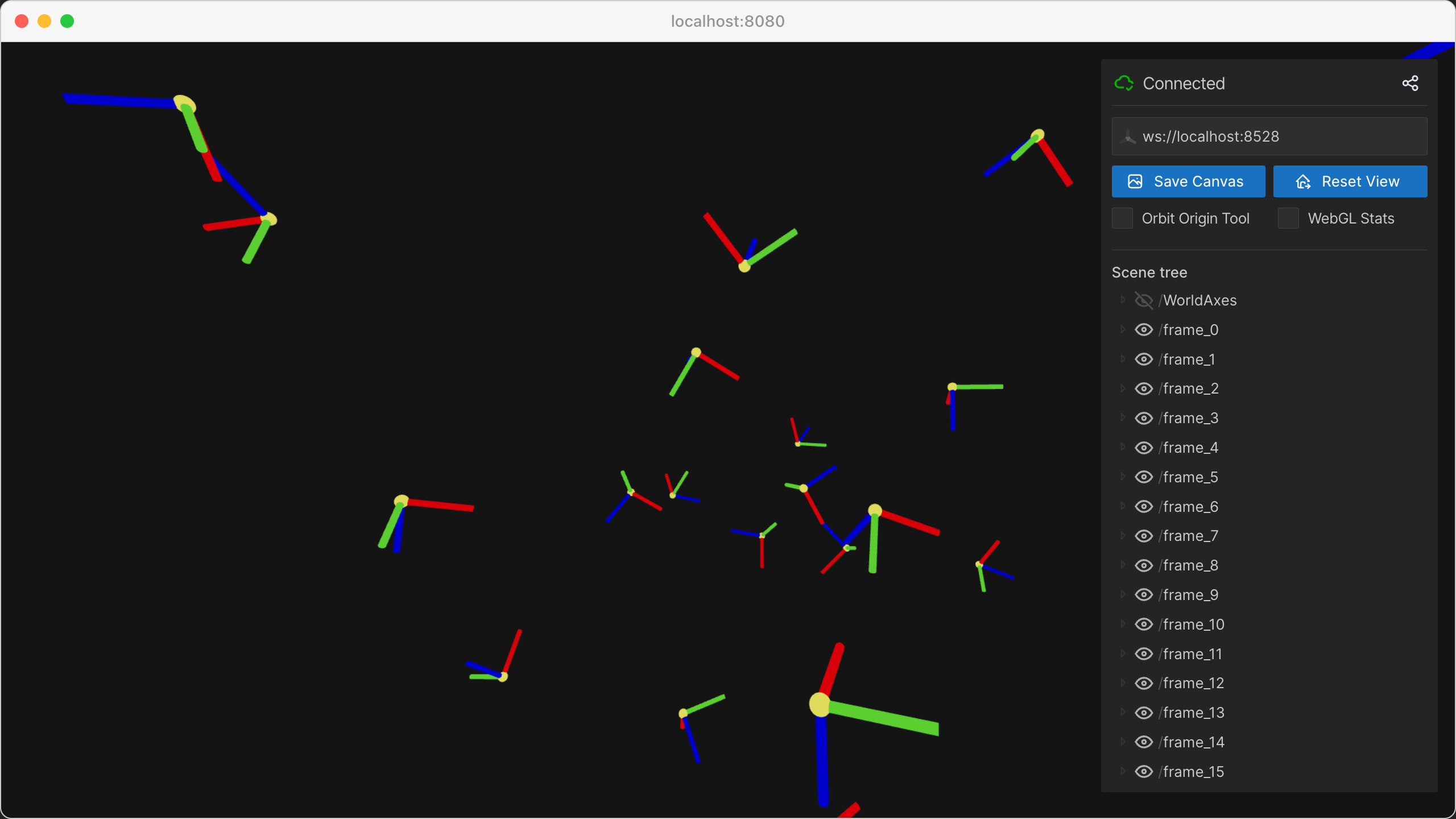

3D GUI elements

Embed GUI controls directly in the 3D scene positioned relative to scene objects.

Features:

• viser.SceneApi.add_3d_gui_container() for 3D-positioned GUI panels

• Click interactions with coordinate frame objects

• Context-sensitive controls attached to scene objects

• Dynamic GUI panel visibility and positioning

Source: examples/02_gui/06_gui_in_scene.py

Code

import time
from typing import Optional

import numpy as np

import viser
import viser.transforms as tf

server = viser.ViserServer()
server.gui.configure_theme(dark_mode=True)
num_frames = 20


@server.on_client_connect
def _(client: viser.ClientHandle) -> None:

    rng = np.random.default_rng(0)

    displayed_3d_container: Optional[viser.Gui3dContainerHandle] = None

    def make_frame(i: int) -> None:
        # Sample a random orientation + position.
        wxyz = rng.normal(size=4)
        wxyz /= np.linalg.norm(wxyz)
        position = rng.uniform(-3.0, 3.0, size=(3,))

        # Create a coordinate frame and label.
        frame = client.scene.add_frame(f"/frame_{i}", wxyz=wxyz, position=position)

        # Move the camera when we click a frame.
        @frame.on_click
        def _(_):
            nonlocal displayed_3d_container

            # Close previously opened GUI.
            if displayed_3d_container is not None:
                displayed_3d_container.remove()

            displayed_3d_container = client.scene.add_3d_gui_container(
                f"/frame_{i}/gui"
            )
            with displayed_3d_container:
                go_to = client.gui.add_button("Go to")
                randomize_orientation = client.gui.add_button("Randomize orientation")
                close = client.gui.add_button("Close GUI")

            @go_to.on_click
            def _(_) -> None:
                T_world_current = tf.SE3.from_rotation_and_translation(
                    tf.SO3(client.camera.wxyz), client.camera.position
                )
                T_world_target = tf.SE3.from_rotation_and_translation(
                    tf.SO3(frame.wxyz), frame.position
                ) @ tf.SE3.from_translation(np.array([0.0, 0.0, -0.5]))

                T_current_target = T_world_current.inverse() @ T_world_target

                for j in range(20):
                    T_world_set = T_world_current @ tf.SE3.exp(
                        T_current_target.log() * j / 19.0
                    )

                    # Important bit: we atomically set both the orientation and the position
                    # of the camera.
                    with client.atomic():
                        client.camera.wxyz = T_world_set.rotation().wxyz
                        client.camera.position = T_world_set.translation()
                    time.sleep(1.0 / 60.0)

                # Mouse interactions should orbit around the frame origin.
                client.camera.look_at = frame.position

            @randomize_orientation.on_click
            def _(_) -> None:
                wxyz = rng.normal(size=4)
                wxyz /= np.linalg.norm(wxyz)
                frame.wxyz = wxyz

            @close.on_click
            def _(_) -> None:
                nonlocal displayed_3d_container
                if displayed_3d_container is None:
                    return
                displayed_3d_container.remove()
                displayed_3d_container = None

    for i in range(num_frames):
        make_frame(i)


while True:
    time.sleep(1.0)
