Basic GUI controls¶
Create interactive controls like sliders, buttons, and text inputs.

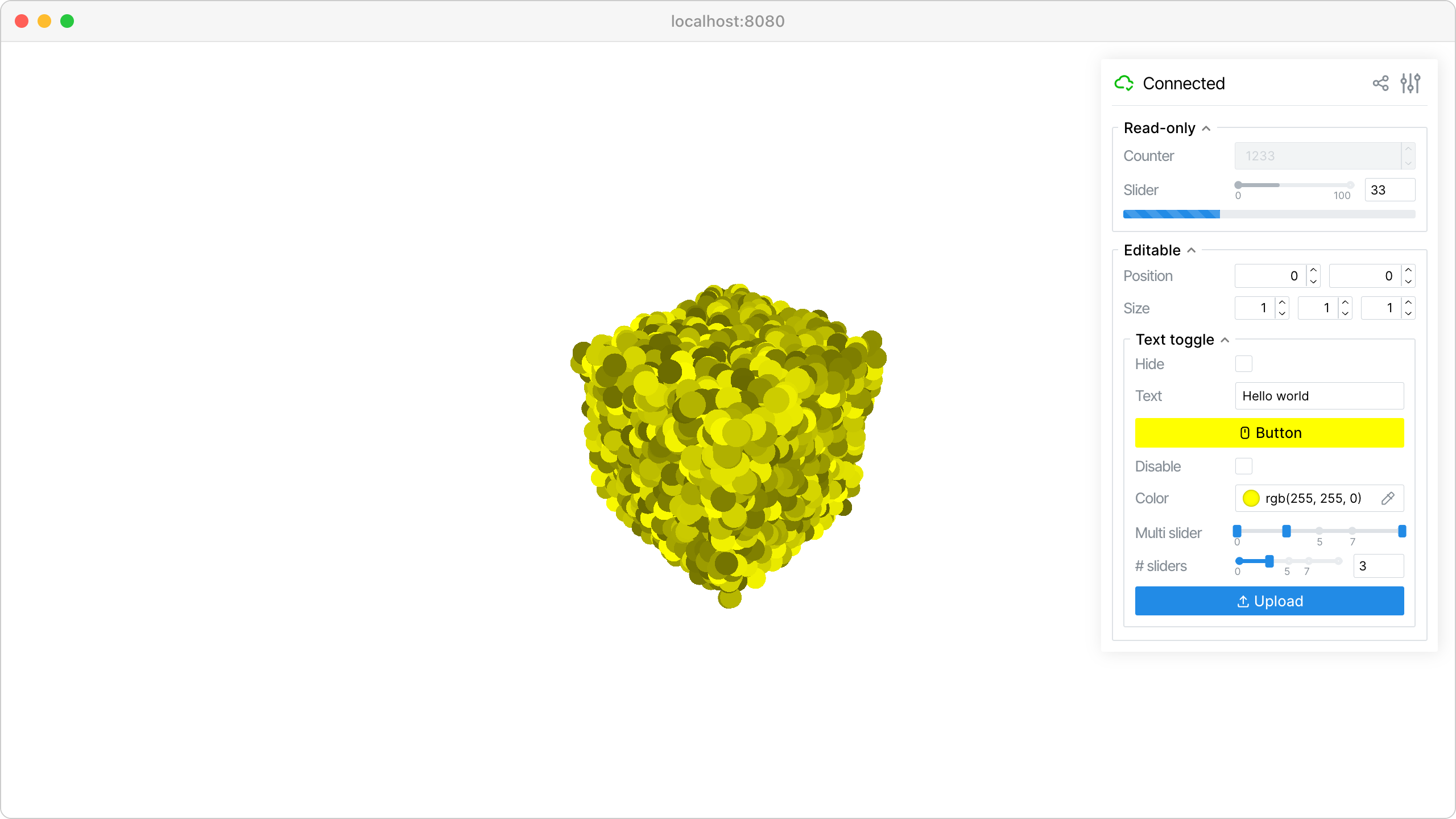

This example demonstrates the full range of GUI controls available in viser, including:
Input Controls:
viser.GuiApi.add_number()
for numeric inputviser.GuiApi.add_slider()
for range selectionviser.GuiApi.add_vector2()
andviser.GuiApi.add_vector3()
for coordinate inputviser.GuiApi.add_text()
for text inputviser.GuiApi.add_rgb()
for color selection
Interactive Elements:
viser.GuiApi.add_button()
with custom icons fromviser.Icon
viser.GuiApi.add_checkbox()
for boolean togglesviser.GuiApi.add_multi_slider()
for multi-handle range controlsviser.GuiApi.add_upload_button()
for file uploads
Layout & Organization:
viser.GuiApi.add_folder()
to group related controlsviser.GuiApi.add_progress_bar()
for status indication
The example shows how to read control values with .value
, manage visibility with .visible
, and disable controls with .disabled
. GUI state automatically synchronizes with all connected clients.
Source: examples/02_gui/00_basic_controls.py

Code¶
1import time
2
3import numpy as np
4
5import viser
6
7
8def main() -> None:
9 server = viser.ViserServer()
10
11 # Add some common GUI elements: number inputs, sliders, vectors, checkboxes.
12 with server.gui.add_folder("Read-only"):
13 gui_counter = server.gui.add_number(
14 "Counter",
15 initial_value=0,
16 disabled=True,
17 )
18 gui_slider = server.gui.add_slider(
19 "Slider",
20 min=0,
21 max=100,
22 step=1,
23 initial_value=0,
24 disabled=True,
25 )
26 gui_progress = server.gui.add_progress_bar(25, animated=True)
27
28 with server.gui.add_folder("Editable"):
29 gui_vector2 = server.gui.add_vector2(
30 "Position",
31 initial_value=(0.0, 0.0),
32 step=0.1,
33 )
34 gui_vector3 = server.gui.add_vector3(
35 "Size",
36 initial_value=(1.0, 1.0, 1.0),
37 step=0.25,
38 )
39 with server.gui.add_folder("Text toggle"):
40 gui_checkbox_hide = server.gui.add_checkbox(
41 "Hide",
42 initial_value=False,
43 )
44 gui_text = server.gui.add_text(
45 "Text",
46 initial_value="Hello world",
47 )
48 gui_button = server.gui.add_button("Button", icon=viser.Icon.MOUSE)
49 gui_checkbox_disable = server.gui.add_checkbox(
50 "Disable",
51 initial_value=False,
52 )
53 gui_rgb = server.gui.add_rgb(
54 "Color",
55 initial_value=(255, 255, 0),
56 )
57 gui_multi_slider = server.gui.add_multi_slider(
58 "Multi slider",
59 min=0,
60 max=100,
61 step=1,
62 initial_value=(0, 30, 100),
63 marks=((0, "0"), (50, "5"), (70, "7"), 99),
64 )
65 gui_slider_positions = server.gui.add_slider(
66 "# sliders",
67 min=0,
68 max=10,
69 step=1,
70 initial_value=3,
71 marks=((0, "0"), (5, "5"), (7, "7"), 10),
72 )
73 gui_upload_button = server.gui.add_upload_button(
74 "Upload", icon=viser.Icon.UPLOAD
75 )
76
77 @gui_upload_button.on_upload
78 def _(_) -> None:
79 file = gui_upload_button.value
80 print(file.name, len(file.content), "bytes")
81
82 # Pre-generate a point cloud to send.
83 point_positions = np.random.uniform(low=-1.0, high=1.0, size=(5000, 3))
84 color_coeffs = np.random.uniform(0.4, 1.0, size=(point_positions.shape[0]))
85
86 counter = 0
87 while True:
88 # We can set the value of an input to a particular value. Changes are
89 # automatically reflected in connected clients.
90 gui_counter.value = counter
91 gui_slider.value = counter % 100
92
93 # We can set the position of a scene node with `.position`, and read the value
94 # of a gui element with `.value`. Changes are automatically reflected in
95 # connected clients.
96 server.scene.add_point_cloud(
97 "/point_cloud",
98 points=point_positions * np.array(gui_vector3.value, dtype=np.float32),
99 colors=(np.array(gui_rgb.value) * color_coeffs[:, None]).astype(np.uint8),
100 position=gui_vector2.value + (0,),
101 point_shape="circle",
102 )
103 gui_button.color = gui_rgb.value
104
105 gui_progress.value = float((counter % 100))
106
107 # We can use `.visible` and `.disabled` to toggle GUI elements.
108 gui_text.visible = not gui_checkbox_hide.value
109 gui_button.visible = not gui_checkbox_hide.value
110 gui_rgb.disabled = gui_checkbox_disable.value
111 gui_multi_slider.disabled = gui_checkbox_disable.value
112 gui_slider_positions.disabled = gui_checkbox_disable.value
113 gui_button.disabled = gui_checkbox_disable.value
114 gui_upload_button.disabled = gui_checkbox_disable.value
115
116 # Update the number of handles in the multi-slider.
117 if gui_slider_positions.value != len(gui_multi_slider.value):
118 gui_multi_slider.value = np.linspace(
119 0, 100, gui_slider_positions.value, dtype=np.int64
120 )
121
122 counter += 1
123 time.sleep(0.01)
124
125
126if __name__ == "__main__":
127 main()
