Core concepts

Creating a server, adding 3D objects to the scene, and building interactive GUI controls.

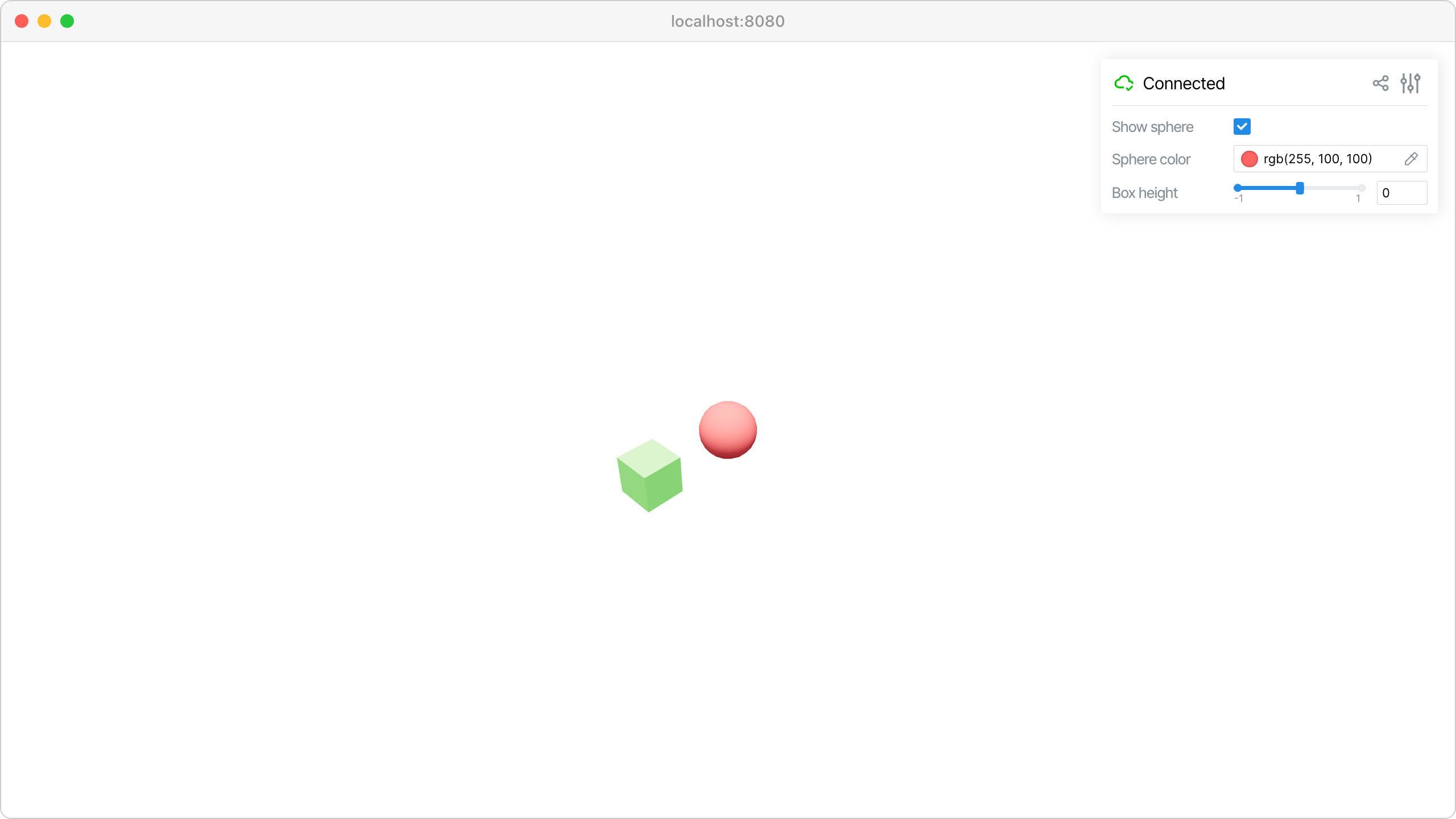

We start by creating a viser.ViserServer instance, which automatically opens a web interface at http://localhost:8080. The server provides two main APIs:

• Scene API (viser.ViserServer.scene): Add 3D objects like meshes, point clouds, and primitive shapes using methods like viser.SceneApi.add_icosphere() and viser.SceneApi.add_box().

• GUI API (viser.ViserServer.gui): Create interactive controls like sliders, buttons, and color pickers using methods like viser.GuiApi.add_slider() and viser.GuiApi.add_rgb().

Source: examples/00_getting_started/01_core_concepts.py

Code

import time

import viser


def main():
    server = viser.ViserServer()

    # Add 3D objects to the scene
    sphere = server.scene.add_icosphere(
        name="/sphere",
        radius=0.3,
        color=(255, 100, 100),
        position=(0.0, 0.0, 0.0),
    )
    box = server.scene.add_box(
        name="/box",
        dimensions=(0.4, 0.4, 0.4),
        color=(100, 255, 100),
        position=(1.0, 0.0, 0.0),
    )

    # Create GUI controls
    sphere_visible = server.gui.add_checkbox("Show sphere", initial_value=True)
    sphere_color = server.gui.add_rgb("Sphere color", initial_value=(255, 100, 100))
    box_height = server.gui.add_slider(
        "Box height", min=-1.0, max=1.0, step=0.1, initial_value=0.0
    )

    # Connect GUI controls to scene objects
    @sphere_visible.on_update
    def _(_):
        sphere.visible = sphere_visible.value

    @sphere_color.on_update
    def _(_):
        sphere.color = sphere_color.value

    @box_height.on_update
    def _(_):
        box.position = (1.0, 0.0, box_height.value)

    print("Server running")
    while True:
        time.sleep(10.0)


if __name__ == "__main__":
    main()
