Embedding Visualizations

This guide describes how to export 3D visualizations from Viser and embed them into static webpages. The process involves three main steps: exporting scene state, creating a client build, and hosting the visualization.

Warning

This workflow is experimental and not yet polished. We’re documenting it nonetheless, since we think it’s quite useful! If you have suggestions or improvements, issues and PRs are welcome.

Step 1: Exporting Scene State

You can export static or dynamic 3D data from a Viser scene using the scene serializer. ViserServer.get_scene_serializer() returns a serializer object that can serialize the current scene state to a binary format.

Static Scene Export

For static 3D visualizations, StateSerializer.serialize() can be used to save the scene state:

import viser
from pathlib import Path

server = viser.ViserServer()

# Add objects to the scene via server.scene
# For example:
# server.scene.add_mesh(...)
# server.scene.add_point_cloud(...)
server.scene.add_box("/box", color=(255, 0, 0), dimensions=(1, 1, 1))

# Serialize and save the scene state
data = server.get_scene_serializer().serialize()  # Returns bytes
Path("recording.viser").write_bytes(data)

As a suggestion, you can also add a button for exporting the scene state. Clicking the button in your web browser wil trigger a download of the .viser file.

import viser
server = viser.ViserServer()

# Add objects to the scene via server.scene.
# For example:
# server.scene.add_mesh(...)
# server.scene.add_point_cloud(...)
server.scene.add_box("/box", color=(255, 0, 0), dimensions=(1, 1, 1))

save_button = server.gui.add_button("Save Scene")

@save_button.on_click
def _(event: viser.GuiEvent) -> None:
    assert event.client is not None
    event.client.send_file_download("recording.viser", server.get_scene_serializer().serialize())

server.sleep_forever()

Dynamic Scene Export

For dynamic visualizations with animation, you can create a “3D video” by calling StateSerializer.insert_sleep() between frames:

import viser
import numpy as np
from pathlib import Path

server = viser.ViserServer()

# Add objects to the scene via server.scene
# For example:
# server.scene.add_mesh(...)
# server.scene.add_point_cloud(...)
box = server.scene.add_box("/box", color=(255, 0, 0), dimensions=(1, 1, 1))

# Create serializer.
serializer = server.get_scene_serializer()

num_frames = 100
for t in range(num_frames):
    # Update existing scene objects or add new ones.
    box.position = (0.0, 0.0, np.sin(t / num_frames * 2 * np.pi))

    # Add a frame delay.
    serializer.insert_sleep(1.0 / 30.0)

# Save the complete animation.
data = serializer.serialize()  # Returns bytes
Path("recording.viser").write_bytes(data)

Note

Always add scene elements using ViserServer.scene, not ClientHandle.scene.

Note

The .viser file is a binary format containing scene state data and is not meant to be human-readable.

Step 2: Creating a Viser Client Build

To serve the 3D visualization, you’ll need two things:

  1. The .viser file containing your scene data

  2. A build of the Viser client (static HTML/JS/CSS files)

With Viser installed, create the Viser client build using the command-line tool:

# View available options
viser-build-client --help

# Build to a specific directory
viser-build-client --output-dir viser-client/

Step 3: Hosting

Directory Structure

For our hosting instructions, we’re going to assume the following directory structure:

.
├── recordings/
│   └── recording.viser    # Your exported scene data
└── viser-client/
    ├── index.html         # Generated client files
    ├── assets/
    └── ...

This is just a suggestion; you can structure your files however you like.

Local Development Server

For testing locally, you can use Python’s built-in HTTP server:

# Navigate to the parent directory containing both folders
cd /path/to/parent/dir

# Start the server (default port 8000)
python -m http.server 8000

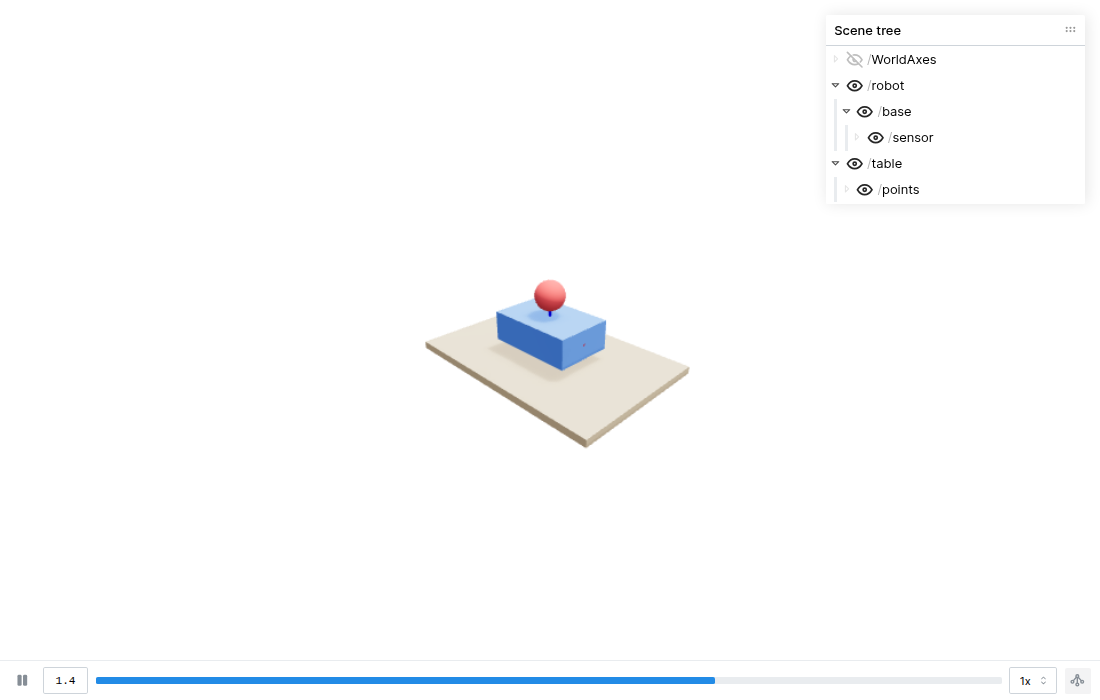

Then open your browser and navigate to:

  • http://localhost:8000/viser-client/ (default port)

This should show the a standard Viser client. To visualize the exported scene, you’ll need to specify a URL via the ?playbackPath= parameter:

  • http://localhost:8000/viser-client/?playbackPath=http://localhost:8000/recordings/recording.viser

GitHub Pages Deployment

To host your visualization on GitHub Pages:

  1. Create a new repository or use an existing one

  2. Create a gh-pages branch or enable GitHub Pages on your main branch

  3. Push your directory structure to the repository:

    git add recordings/ viser-client/
git commit -m "Add Viser visualization"
git push origin main  # or gh-pages

Your visualization will be available at: https://user.github.io/repo/viser-client/?playbackPath=https://user.github.io/repo/recordings/recording.viser

You can embed this into other webpages using an HTML <iframe /> tag.

Step 4: Setting the initial camera pose

To set the initial camera pose, you can add a &logCamera parameter to the URL:

  • http://localhost:8000/viser-client/?playbackPath=http://localhost:8000/recordings/recording.viser&logCamera

Then, open your Javascript console. You should see the camera pose printed whenever you move the camera. It should look something like this:

  • &initialCameraPosition=2.216,-4.233,-0.947&initialCameraLookAt=-0.115,0.346,-0.192&initialCameraUp=0.329,-0.904,0.272

You can then add this string to the URL to set the initial camera pose.
